T-6707L
IP Network Active Speakers
Description

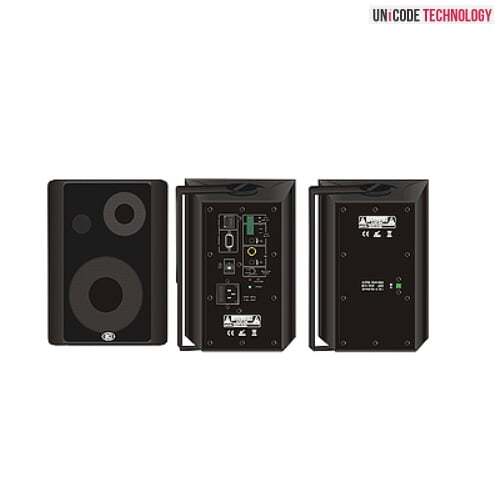

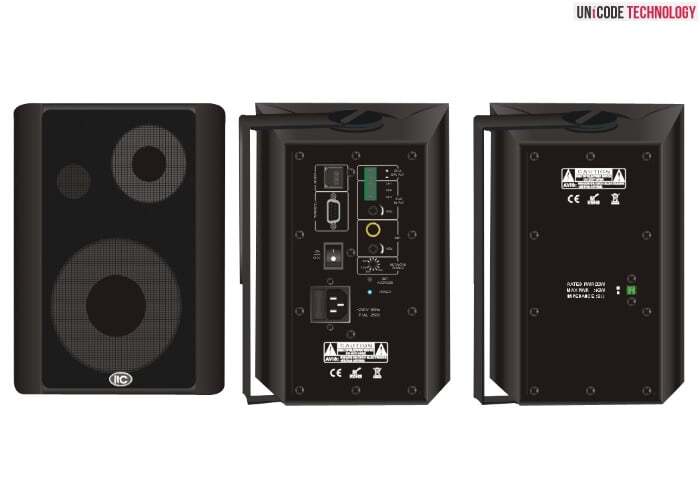

T-6707L IP Network Active Speakers
Apply to ordinary classrooms, multimedia classrooms, offices, meeting rooms and other places of broadcast and local broadcast.
T-6707L Features:
* Professional integration of wall-mounted design, exquisite appearance, sophisticated technology, filling the high-end temperament.
* Equipment with embedded computer technology and DSP audio processing technology design; high-speed industrial-grade chips, the start-up time of less than 1 second.
* Built 1 channel network hardware audio decoding module that supports T CP/ IP, UDP, IGMP (multicast) protocol for network transmission 16 CD-quality stereo audio signal.
* Support initiative to take over the task when off-network, off-server, enabling the terminal disconnection autoplay function.
* Built-in 4G high-capacity storage space, the program can be pushed through the network to a remote memory storage, maximum storage 1000 groups of data, the digital audio storage capacity of at least 60 hours, data storage of no less than 10 years.
* Built-in high-precision digital timing clock chip, the largest power outage timing is not less than 3 years, support intelligent network timing, and server error is less than 0.05 seconds.
* With intelligent media library and intelligent caching capabilities, self-aware caching technology applications, optimize bandwidth usage, saving up to 99% of the network bandwidth.
* Built-in 2 x 10W / 20W / 30W (8 loads) stereo power amplifier module, the sound is smooth, power is strong, can select the network power, support left and right channel volume balance and adjustment.
* 1 line (AUX) and 1 microphone (MIC) inputs with separate volume control, and support for off-network paging function.
* Built-in audio processing circuitry to support multi-channel signal amplification, mixing, support three class audio priority management.
* Support for 1000 classes audio priority mute control.
* Support PSTN phone broadcasting, support SMS voice broadcast.
* Support mobile WIFI on demand, wireless remote control on demand.
* Support panel serial port expansion on demand, to achieve remote programming on demand, program selections, adjust the volume.
* Support for server management functions authorized to operate a unified, unified configuration management user and password.
* Support DHCP, compatible routers, switches, bridges, gateways, Modem, Intelnet, 2G, 3G, 4G, multicast, unicast and other random network structure.
* Firmware supports a variety of upgraded solutions, such as network upgrade, serial upgrade.
* Support for the new configuration registered intelligent voice prompts.
* Support 15KVESD protection, built-in network isolation mine processing circuit.
* One IP address reset button, if you lose the IP address, can restore the factory IP address.
* 1 channel to download the PC serial port IP address, is used to modify the IP address of network decoding module.
* Digital products, expansion of convenience, without geographical restrictions, no additional room management equipment, total net free line construction design, easy to install.
T-6707L Specifications:
| Model | T-6707L |
| Network Input | Standard RJ45 port |
| Communication Protocol | TCP/IP, UDP & IGMP |
| Audio Format | MP3/MP2 |
| Sampling Rate | 8K~48KHz |
| Transmission Speed | 100Mbps |
| Audio Mode | 16 digit stereo CD level |
| Frequency Output | 80Hz~16KHz |
| T.H.D | ≤1% |
| S/N Ratio | >70dB |
| Working Temp | 5℃ ~40℃ |
| Humidity | 20%~80% |
| Power Consumption | ≤70W |
| Power Supply | ~110V/60Hz or ~230V/50Hz |
| Dimensions | 245x162x182mm |
| Weight | 5.26Kg |
