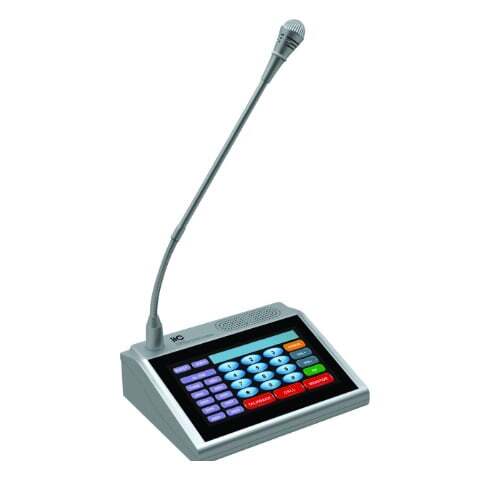

T-6702A IP Network & Intercom Paging Microphone

T-6702A Description

* Desktop type design, with 7-inch resistance touch screen equipped with 800 x 480 graphics dot-matrix K600
and 65K color shows. Clear screen and sensitive touch. It entered into standby, low-power save electricity and user-friendly operation screen.

* With number keys, function key interface. Support one key call single zone and whole zones, support direct
operation or intercom any terminal. Support direct operation monitor according to an actual environment, and maxi monitor distance to 5 meters.

* Embed PC technology, built-in DSP Audio processing technology design and high-speed industrial chip to ensure start time less than 1 second.

* Built-in single network hardware audio decoding module, support TCP/IP, UDP, IGMP(Multicast)protocol, transmit a 16-bit stereo audio signal of CD quality through network transmission.

* Support DHCP, compatible routers, switches, Bridges, Modem, Internet, 2G, 3G, 4G, arbitrary, multicast, etc.
Support remote on-demand function, support custom audio priority level 1000’s sound control (support multipath signal amplification, mixing and tertiary priority control, tone)

* Support two-way intercom function, with network echo cancellation module. network delay is less than 300 ms. At the same time, the network echo and noise can be completely inhibited.

* Support for help signal bell, the splash screen tips, a key to accept help, intercom function, can also support hands-free calls and receive the broadcast at the same time, realize the quick links.

* Support multiple call strategy, including call waiting, call forwarding, an unanswered reminder.

* Support automatic answer, answer by the operation, support customize answering reminder tone.

* Support customize the time transfer time, no one answered, call waiting time.

* Built-in meeting schedule management functions, support meeting discuss mode.

* Built-in 2w all frequency hi-fi speaker to support two-way conversation and network monitor.

* A dia. 3.5 headphone socket and a dia. 3.5 MIC input socket, can be matched with headsets and portable microphone in the market.

* One channel audio line output, external power amplifier. one channel audio line input can provide multi-audio supply.

* One short circuit of an alarm trigger, cascade outside alarm equipment. One channel short circuit input can be used as trigger voice reminder (or alarm).

* Strong directional microphones to ensure that clear communication without interference.

* Serial port IP address for download of PC to use for modifying the network IP address decode module.

* Easy to expand, without being limited by the geographical position. No need for increased management equipment of engine room, simple installation for with network construction design concept.

Model T-6702A
Network Input Standard RJ45
Communication Protocol TCP/IP, UDP, IGMP(multicast)
Audio Format MP3/MP2
Sampling Rate 8K~48KHz
Transmission Speed 100Mbps
Audio Mode 16 digit stereo CD sound quality
Screen Size 7 inch
Screen Resolution 800 x 480 pixel
Screen Type 65 k color DGUS screen
Keyboard Types Virtual QWERTY keyboard
keyboard Entry Method Touch
Rated Power and Impedance of 4 ohm, 2W
Build-in Speaker
THD =<1%
Frequency Response 80Hz~16KHz +1dB/-3dB
S/N Ratio >68dB
Rated Power and Impedance of 32 ohm, 20mW
Level of LINE OUT 1000mV Industry-standard voltage wire terminals
Output Impedance of LINE OUT 470 ohm
Input Sensitivity of LINE IN 350mV Industry-standard voltage wire terminals
Input Sensitivity of MIC 10mV
Short-circuit input Dry contact input
Short-circuit Output Max 3A/120V Dry contact
Working Temp 5 ℃~40℃
Humidity 20%~80% Relative humidity, without condensation
Power Consumption =< 6W
Power Supply DC24V
Dimensions 200 x 160 x 60 mm
Weight 1.2Kg

Read More

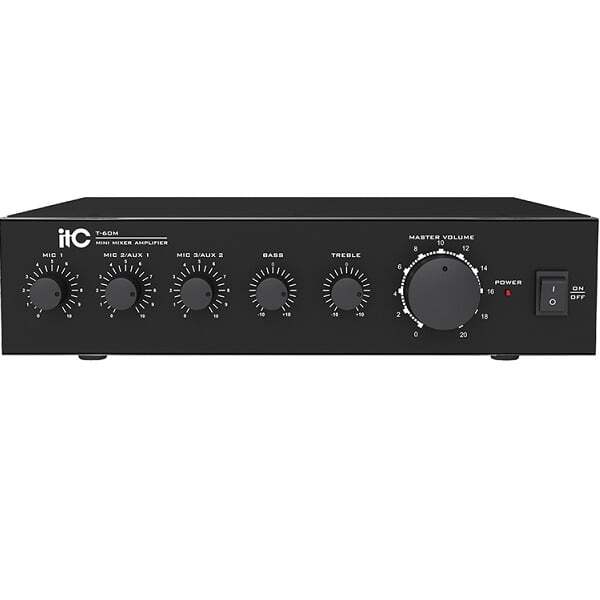

ITC Mixer Amplifier
