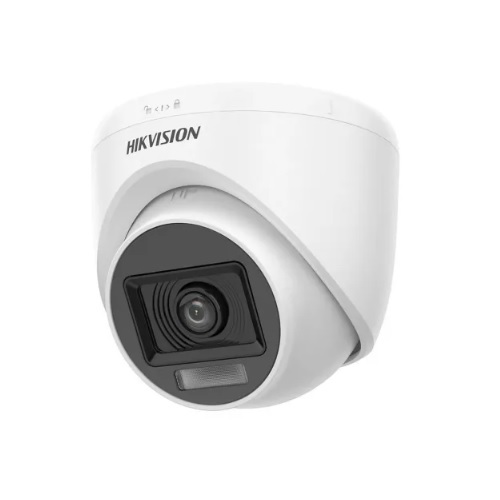

DS-2CE76D0T-EXLPF
৳ 1,650.00
Key Features
- Model: DS-2CE76D0T-EXLPF (2.8mm)
- Image Sensor: 2 MP CMOS
- Max. Resolution: 1920 (H) × 1080 (V)
- Up to 20 meters IR distance
- Lens Type: 2.8 mm fixed focal lens
- Warranty 01 tear
Description
| General | ||
| Casing | Plastic | |
| Dimensions | Ø85 mm × 84.6 mm (3.35″ × 3.33″) | |
| Weight | Max. 150 g (0.33 lb.) | |
| Pan/Tilt/Rotation | Pan: 0 to 360°, Tilt: 0 to 90°, Rotate: 0 to 360° | |
| Operating Conditions | -40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation) | |
| Power Supply | 12 VDC ± 25%, Max. 3.2 W | |
| Camera | ||
| Image Sensor | 2 MP CMOS | |
| Electronic Shutter Speed | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s | |
| Minimum Illumination | 0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR | |
| IR Distance | Up to 20 m IR distance for bright night imaging Up to 20 m white light distance for bright night imaging | |
| Lens | ||
| Lens Type | 2.8 mm fixed focal lens | |
| Mount Type | M12 | |
| Focal Length | 3.6 mm, horizontal FOV: 77°, vertical FOV: 43°, diagonal FOV: 90° | |
| Video | ||
| Resolution | 1920 (H) × 1080 (V) | |
| Video Output | 4 in 1 video output (switchable TVI/AHD/CVI/CVBS) | |
| Day/Night | ICR | |
| Warranty | ||
| Warranty | 1 year | |
