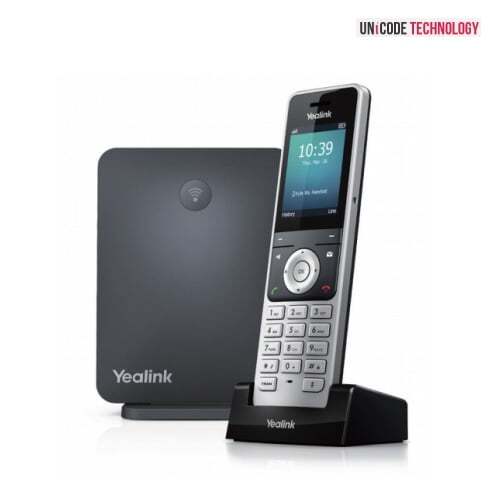

W60 Package

W60 Package High-performance DECT IP phone system with user-centric design

• High-performance SIP cordless phone system
• 2.4″ 240 x 320 color screen with an intuitive user interface
• Up to 8 concurrent calls
• Up to 8 DECT cordless handsets
• Up to 8 VoIP accounts
• Support Opus audio codec
• Up to 30-hours talk time
• Up to 400-hours standby time
• Quick charging: 10-min charge time for 2-hour talk time
• TLS and SRTP security encryption
• Noise Reduction System
• Headset connection via 3.5 mm jack
• Charger wall mountable

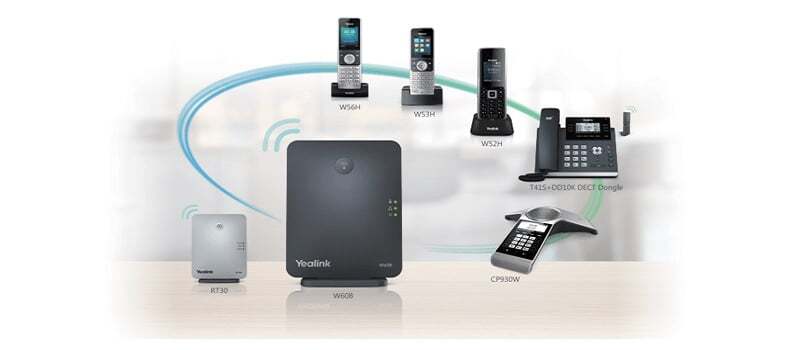

The Yealink W60 Package, being a high-performance SIP cordless phone system, is the ideal solution for small and medium-sized businesses. Paring with up to a total of 8 Yealink W52H/W56H DECT handsets, it allows you to enjoy superb mobility and efficient flexibility immediately as well as significantly eliminates additional wiring troubles and charges. To provide better and higher performance, this DECT IP phone not only supports up to 8 VoIP accounts and 8 concurrent calls but also speeds up its startup and signal connection, slashes its upgrade downtime as well

W60 Package Specifications

W60 Package Phone Features
> Up to 8 simultaneous calls
> Up to 8 handsets
> Up to 8 VoIP accounts
> Up to 2 simultaneous calls per handset
> Up to 5 repeaters per base station
> Handset selection for receiving calls
> Handset and number selection for placing a call
> Paging, intercom, auto answer, dial plan
> Call hold, call transfer, 3-way conference
> Switching between calls
> Call waiting, mute, silence, DND
> Caller ID with name and number
> Anonymous call, Anonymous call rejection
> Call forward (always/busy/no answer)
> Speed dial, voicemail, redial
> Message Waiting Indication (MWI)
> Local phonebook for up to 500 entries
(store in the base)
> Remote phonebook/LDAP
> Phonebook search/import/export
> Call history (all/missed/placed/received)
> Direct IP call without a SIP proxy
> Reset to factory, reboot
> Keypad lock, emergency call, music on hold
> Broadsoft directory, BroadSoft call log
> Broadworks feature key synchronization
> Shared Call Appearance (SCA)

Management
> Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
> Auto-provision with PnP
> Handset upgrade: OTA (Over-The-Air)/USB port
> Configuration: browser/phone/auto-provision
> Trace package and system log export

Audio Features
> Full-duplex speakerphone
> Hearing Aid Compatibility (HAC) compliant
> Receiver volume control: 5 steps
> Ringer volume control: 5 steps+off
> Multiple advisory tones
> Acoustic warning for low battery status
> DTMF
> Wideband codec: Opus, AMR-WB (optional), G.722
> Narrowband codec:
PCMU, PCMA, G.726, G.729, iLBC
> VAD, CNG, AEC, AGC, PLC, AJB
> Support VQ-RTCPXR (RFC6035)

Network Features
> SIP v1 (RFC2543), v2 (RFC3261)
> SNTP/NTP
> VLAN (802.1Q and 802.1P)
> 802.1x, LLDP, PPPoE
> STUN Client (NAT Traversal)
> UDP/TCP/TLS
> IP assignment: static/DHCP
> Support outbound proxy server backup
Security
> Open VPN
> Transport Layer Security (TLS)
> HTTPS (server/client), SRTP (RFC3711)
> Digest authentication using MD5
> Secure configuration file via AES encryption
> Support SHA256/SHA512/SHA384
> Three-level configuration mode: Admin/Var/User

DECT
> Frequency bands:
1880 – 1900 MHz (Europe), 1920 – 1930 MHz (US)
> DECT Standards: CAT-iq2.0

Physical Features
> Indoor Range: 20m~50m (The ideal distance is 50m)
> Outdoor Range: 300m (in ideal conditions)
> Standby Time: 400 hours (in ideal conditions)
> Talk Time: 30 hours
> 2.4’’ 240×320 pixels color display
> Desktop or wall mountable
> LCD backlit, key backlit
> Energy-saving ECO mode/ECO Mode+
> 12 key numerical keypads, 5 navigation keys,
2 softkeys, 6 function keys, 6 shortcut keys
> Three LED indicators on W60B:
– 1 x Registration LED
– 1 x Network Status LED
– 1 x Power Indicator LED
> External Yealink AC adapter：
AC 100-240V Input and DC 5V/600mA Output
> Phone size: 175mm x 53mm x 20.3mm
> Base station size: 130mm x 100mm x 25.1mm
> Operating humidity: 10~95%
> Operating temperature: -10~+50°C (+14~122°F)

Package Features
> Package content:
– W56H Handset
– W60B Base Station
– Base Stand
– USB Charger-Cradle
– Two Power Adapters
– Ethernet Cable
– Belt Clip
– Rechargeable Battery
– Quick Start Guide
– Handset Protective Case (optional)
> Qty/CNT: 10 PCS
> Giftbox size: 205mm*196mm*95mm
> Carton Meas: 495mm*406mm*223mm
> N.W: 7.5 kg
> G.W: 8.3 kg
